Features
|
|

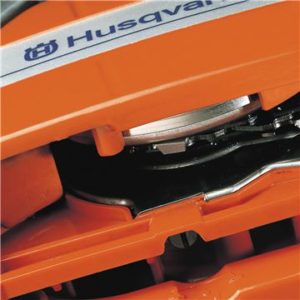

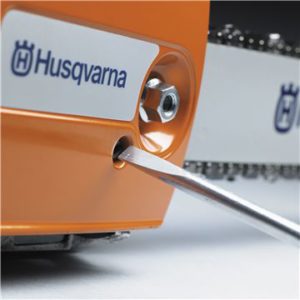

 Adjustable Oil Pump Allows you to control oil flow depending on application and weather conditions. |

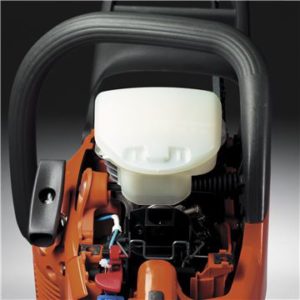

 Quick-Release Air Filter Facilitates cleaning and replacement of the air filter. |
|
Specifications
Engine |
|
| Power output | 2.01 hp |
| Cylinder displacement | 2.15 cu.inch |
| Maximum power speed | 10,000 rpm |
| Max engine/motor | 12,500 rpm |
| Idling speed | 2,900 rpm |
| Torque, max. | 1.57 Nm |
| Torque, max. at rpm | 7,500 rpm |
| Clutch engagement speed (±120) | 4,700 rpm |
| Fuel consumption | 408 g/kWh |
| Spark plug | NGK CMR6H |
| Electrode gap | 0.03 in |
| Ignition module air gap | 0.02 in |
| Oil pump type | Automatic |
| Oil pump capacity, max | 9 ml/min |
| Oil pump capacity, min | 3 ml/min |
| Emission | |
| Exhaust emissions (CO2 EU V) | 860 g/kWh |
Equipment |
|
| Bar length (inch) | 12 in, 14 in, 16 in |
| Recommended bar length, min | 12 in |
| Recommended bar length, max | 14 in |
| Chain type | |
| Gauge | .050″ |
| Pitch | 3/8″ mini |
| Sprocket type | Spur 6 |
Dimensions |
|
| Weight (excl. cutting equipment) | 7.5 lbs |
Lubricant |
|
| Lubricant type (Engine) | Husqvarna 2 stroke or equiv. at 50:1 |
| Oil tank volume | 0.36 US pint |
| Oil tank volume | 0.17 l |
Sound and Noise |
|
| Sound power level, guaranteed (LWA) | 114 dB(A) |
| Sound power level, measured | 112 dB(A) |
| Sound pressure level at operators ear | 103 dB(A) |
Vibration |
|
| Equivalent vibration level (ahv, eq) front handle | 3.6 m/s² |
| Equivalent vibration level (ahv, eq) rear handle | 3.9 m/s² |
