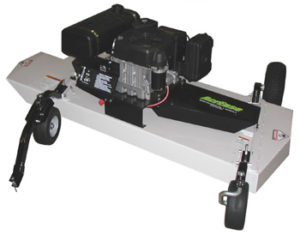

C60BE AcrEase Finish Mower

Features

Large Gas Tank 3 Gal gas tank that provides about 3 – 3-1/2 hours of run time.		Blade Spindles The blade spindles used on the AcrEase are built out of heavy duty welded steel hubs, 25 mm (1″) shafts and large greasable bearings.
Height Adjustment The mower features a 4-point height adjust system that has a cutting height range of 1″ – 4″.		Large Engines The AcrEase Finish Cut Mowers come with large 20 HP electric start engines.
Low Profile Design The low profile design of the AcrEase makes it very easy to mow under low branch trees. There is no need to get beat by branches when the AcrEase is attached to the side of the tow vehicle.	Blade Engagement The mower is equipped with an electric clutch for blade engagement.

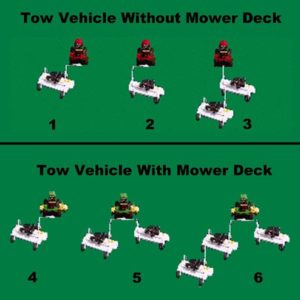

Hitching The AcrEase Finish Cut Mowers have two different types of hitching available. These are the Lawn & Garden Hitching which works best with riding mowers and zero turn mowers and the ATV Tongue which works best with tow vehicles that do not have their own mowing deck. With the Lawn & Garden Hitching there are a variety of ways that multiple wing mowers can be pulled.

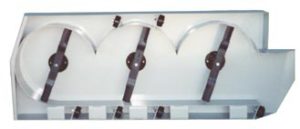

Deck Design The AcrEase deck is the heaviest built in the industry. The main deck is built out of 10 GA (.135″) thick steel with an 7 GA (.179″) thick steel top reinforcement plate. The deck design also features a wide side discharge, deep deck design and 3-20″ blades which are inline. All of these features increase capacity and cut quality. Other standard features are 6 anti-scalp wheels and a front and rear safety zone.

Specifications

Engine			Cutting Deck
Engine Make	Briggs & Stratton Commercial		Number of Blades	3 -20”
Engine Model	Commercial Turf OHV		Blade Tip Speed (ft/min)	17,500
Engine HP	20		Cutting Width	58”
Lubrication Method	Pressure w/ Filter		Cutting Height	1.0” – 4.0”
Electric Start	Yes		Blade Engagement Clutch	Electric Clutch
Fuel Tank Size	3 gal.		Deck Metal Thickness	10 GA
Hour Meter/Tachometer	Yes		Deck Top Plate Thickness	7 GA
Oil Pressure Shut Off	Yes

Dimensions			Miscellaneous
Weight	390 lbs.		Drive Method	1 B Section “V” Belt
Pneumatic Fixed Rear Tire	13/500X6, 2 ply Turf		Class Mower	Commercial
Front Tires on Casters	9/350X4, Slick (Flat Proof Urethane)
# of Anti-Scalp Wheels Under Deck	6 w/ front skids(4 Front, 2 Rear)
